Key Features:
- Thickness: 37.5mm (25mm PIR Insulation 12.5mm Plasterboard)
- Board size: 2400mm x 1200mm
- Coverage: 2.88m2 per board
- Thermal conductivity: 0.022 W/mK

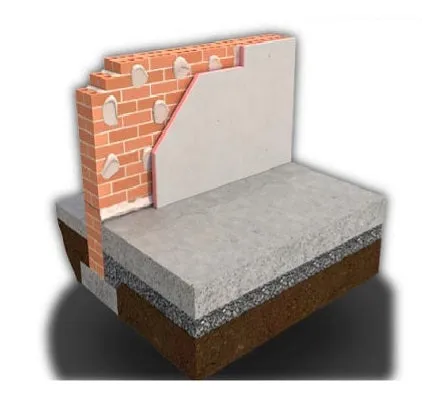

- Application: External walls – internal lining, Pitched roofs – underneath the rafters, Flat roofs – underneath the joists
Description:

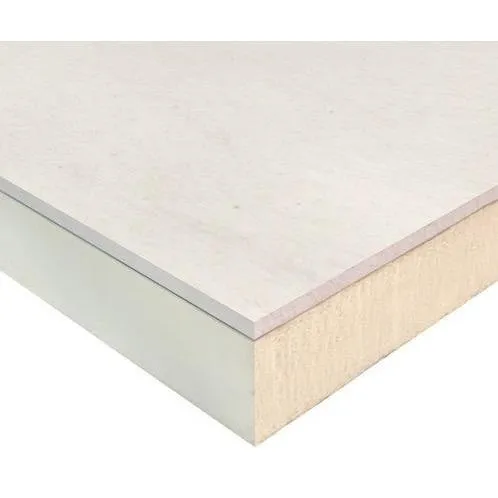

Xtratherm Thin-R Thermal Liner Dot & Dab XT/TL is a composite insulated panel of Xtratherm PIR insulation core with a composite kraft facing bonded to 12.5mm tapered edge plasterboard for internal applications, fixed with proprietary adhesive bonding.
The composite kraft facing on both sides of XT/TL incorporates an integral vapour control layer, which helps to reduce the risk of condensation. XT/TL is designed to provide high levels of thermal insulation and drylining in one operation, providing the solution of choice in newbuild and renovation.
Whether building new or upgrading, due consideration towards the energy efficiency of your home can have many benefits, including reduced energy costs and improved living conditions.
